Electric Motor
£3.00 – £4.00 ex VAT

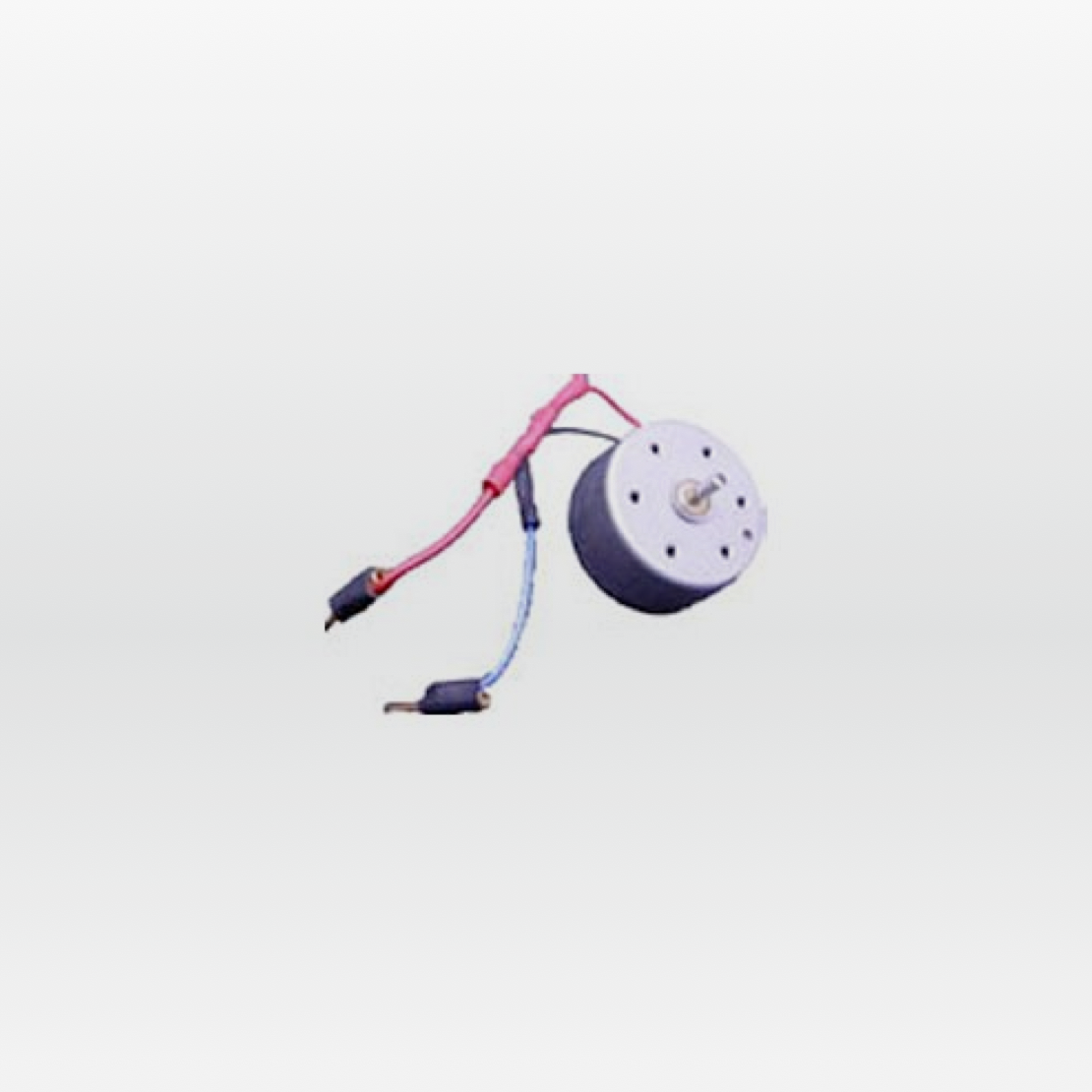

A miniature electric motor for use with solar-powered model projects.
Description
- solar motor with wires or gold-plated plugs
- precision manufactured low inertia type
- size 24 mm diameter, 12 mm length
- output shaft 2 mm diameter, 6 mm length
- weight 22 grams
- working voltage 1.5-4.5V
- starting current 10 mA
- no load speed @2V 2,200 revolutions per minute; drawing current of 0.018A
- at maximum efficiency: 1600 r/min, current 0.055A, torque 2.8 g.cm (0.27 mN.m), output 0.046W
- stall: torque 12 g.cm (1.18 mN.m), current 0.17A
- terminals – either 65 mm long red & black wires (these are thin, take care not to break them) OR with gold-plated plugs (matched to pinch terminals on the flexible cell)
- installation options include miniature gearbox & water pump
Packaging Statement
The source of our tube packaging is from recycling the inner core of carpets and packaging cellophane. All components are in paper bags.
RESOURCES
Related Resources
Additional information
| Terminal Type | Wires, Gold Plated Plugs |
|---|
